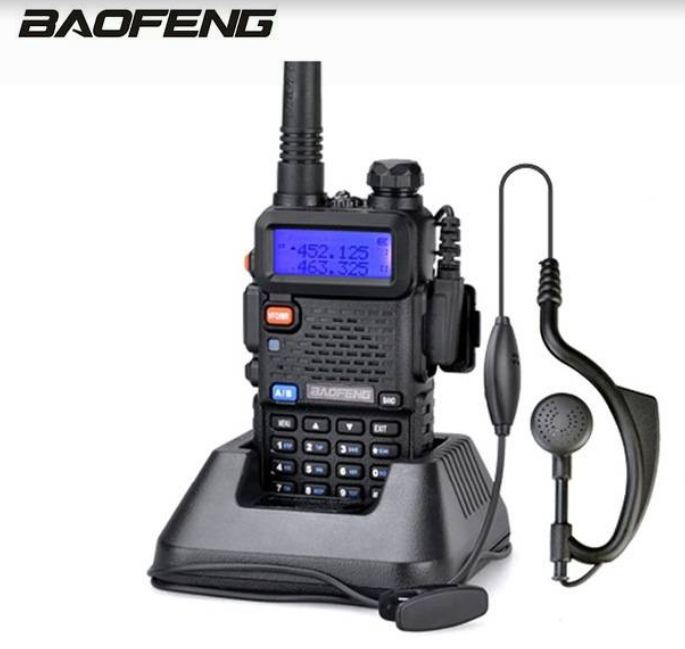

BaoFeng UV-5R


Specifications :

Brand: Baofeng

Model: UV-5R

Language : English

Frequency Range: 136-174MHZ and 400-520HZ (TX/RX)

Channel No. : 128

Frequency Stability: ±2.5ppm

Antenna: High gain Dual Band antenna

Antenna Impedance: 50 Ohm

Operating Voltage: DC 7.4V

Mode of operation: Simple or semi-duplex

Dimensions (W x H x D): 100 x 52 x 32 mm

Weight: about 560g (including battery, antenna)

Antenna: SMA -Female

Earpiece / mic type: Kenwood Plug type

Battery capacity: 1800mAh


Output power: 4W / 1W (Max 5W)

Modulation Mode: 16kF3E / 11k?F3E

Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)

Spurious Radiation: 7W

Adjacent Ch. power: -65dB(Wide) / -60dB(Narrow)

Pre-emphasis characteristics: 6dB

Current: 1.6A(5W)

CTCSS/DCS deviation: 0.5 ±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mv

Intermediation distortion: 10%

Package includes:

1 x Baofeng UV-5R Dual Band Handheld Radio

1 x 7.4V 1800mah Battery Pack

1 x Band Antenna

1 x Desktop Charger

1 x AC/DC Adapter (100-240V)
